FOIL PAPER BASED 4PLY LAMINATES FOR PHARMA APPLICATION

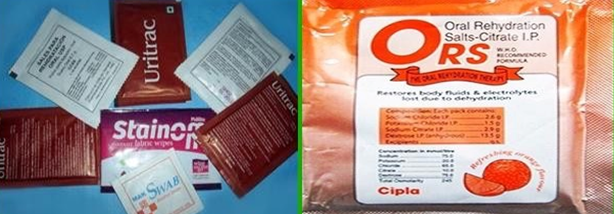

Oral rehydration salt or solution (ORS) is medicinal formulation of salt, sugar & medicines. These apparatus have tremendous water loving characteristic & it unfavourably affected by changing climatic environment of country. Thus protection of this medicinal property is deci- sive job for any packaging material.
We at PATELS POLY-PACK designed extraordinary multilayer laminate that efficiently pro- tects effectiveness of ORS formulations for longer periods. This Al foil, Paper & particular PE based 4ply laminate is brilliant choice for linked Pharma drug formulation packaging.
Structures:
- OLB Paper/ PE / Al foil /PE
- Chromo Paper/ PE / Al foil /PE
- Poster Paper/ PE / Al foil /PE
CERTIFICATE OF ANALYTICAL REPORT
PRODUCT:-4PLY GLASSINE(PAPER BASED)
S.NO |
TESTPARAMETER |
UNIT |
STANDARDLIMIT |
OBSERVATIONS |
|---|---|---|---|---|
1 |
MM |
WIDTH |
(±1MM) |
50MM.To1500MM |
2 |
TOTALGSM |
gms/mtr2 |
(±1MM) |
118 |
3 |
PAPERGSM |
gms/mtr2 |
(±1MM) |
41 |
4 |
POLY1stGSM |
gms/mtr2 |
(±1MM) |
17 |
5 |
FOILGSM/MICRON |
gms/mtr2 |
(±1MM) |
25GSM/9Mic |
6 |
POLYIIndGSM |
gms/mtr2 |
(±1MM) |
35 |
7 |
NUMBEROFJOINTS |
2 |
TwoAverage |
0 |
REMARKS:- We can Produce Customized Composition
PRODUCT:- 4PLY POSTER/BLEACH KRAFT BASED
S.NO |
TESTPARAMETER |
UNIT |
STANDARDLIMIT |
OBSERVATIONS |
|---|---|---|---|---|
1 |
MM |
WIDTH |
(±1MM) |
50MM.To1500MM |
2 |
TOTALGSM |
gms/mtr2 |
(±1MM) |
122 |
3 |
PAPERGSM |
gms/mtr2 |
(±1MM) |
45 |
4 |
POLY1stGSM |
gms/mtr2 |
(±1MM) |
17 |
5 |
FOILGSM/MICRON |
gms/mtr2 |
(±1MM) |
25GSM/9Mic |
6 |
POLYIIndGSM |
gms/mtr2 |
(±1MM) |
35 |
7 |
NUMBEROFJOINTS |
2 |
TwoAverage |
0 |
REMARKS:- We can Produce Customized Composition
Features :
- Packaging of ORS & related drug formulation, BriefSpecifications:
- Presents barrier to beam that may otherwise cause bloom of content.
- Preserves flavor & fragrances of content. Also during manufacturing no solvents & chemicals are used therefore no incidence of solvent odor.
- Packing of ORS drug formulation in the laminate boosts shelf life.
- Admirable printable outside bestows stylish physical exterior & appeal which is vital for its receiv- ing in thepasture.
- Free from curling that diminishes jamming and eases high speedpacking.
- Packaging of ORS & related drug formulation, BriefSpecifications:
- Basis Weight - 110/ 150 Gsm /Custom
- Width - Jumbo reel form 50 mm - 1500mm
- Slitted coils – As per therequirement
