Construction

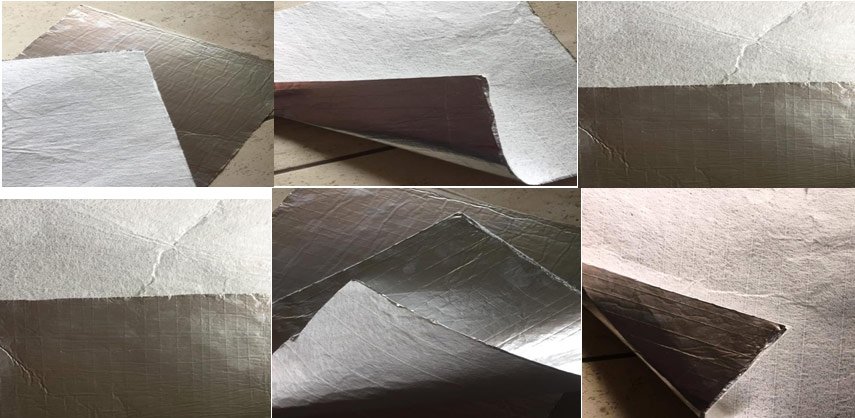

3 to 5 layer Pure reflective Al foil Laminated with Fiber Glass Mesh Tissue
Application
- Polyurethane &Phenolic Insulation panels for roof and wall
- PIR Insulation panel
- PUR Insulation panel
- Thermal board insulation panel
- Insulation panel or roof
- PUR/PIR Foam Pre-insulated Duct Panel
Typical Physical Property
- Al foil Thickness – 7 Mic to 60 Mic
- Tissue and Mesh – 50-100 GSM
- Appearance - Silver/customized
- Width(cm) 1M, 1.2M, 1.25M, 1.3M
Property |
Test Method |
Unit |
Results |
Grammage |
ISO 536 |
g/ sqm |
100-120 (+/-5%) |
Tensile – MD and CD |
ASTM D 828 |
N/25mm |
175-225 |
Burst Strength |
ASTM D 774 |
N/25mm |
185 |
Water Vapour Transmission |
ASTM F 1249 |
N |
<1 |
Temperature Resistant |
ASTM C 1263 -29~66 °C |
- |
Remains Flexible No Delamination |
Emissivity |
ASTM E408 |
% |
0.05 |
Reflectivity |
ASTM E408 |
% |
95% |
Aluminum foil is processed into sandwich panels with foam Board and It’s widely used for central air condition duct/Hybrid ventilation duct, like hospital, supermarket, hotel and more public place. This foil is more and more popular with buyers, as our foil is Green & Environmental protection, no .
Characteristics
- Light, safe, decrease the load of the building.
- Easy to install, shorten the construction period.
- Protect environment, sandwich structure with antioxidant surfaces.
- High performance in heat insulating, can be served in both high and low temperature environment.
- Fireproof, meet the National standard, makes building safe.
- Soundproof, makes a quieter environment.
- Long service life up to 20 years, very low cost in wastage and maintenance.
- Nice appearance.
- Improve air quality
Remarks
- Above data are typical results and not the guaranteed performance.
- Tolerance: Weight and Thickness: ±10%; Width: ±2mm; Length: ±0.5%.
- The products should be stored at room temperature away from wet and heat source.
- Please do trial-application and make sure the product can serve the specific application before actually put it to use.
Packaging Details:
- Core ID: 76mm (3inch) Standard
- length: 100-2000mtrs, Other lengths available On request
- Thickness tolerance: +/-7% Maximum
- Width-100mm & 1520mm
