Construction

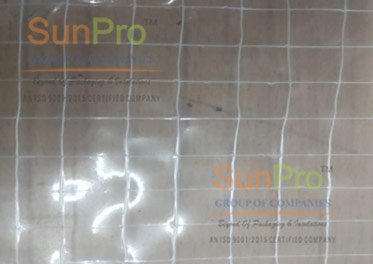

3 TO 5 layer co- extruded composite material made from Fiber Glass reinforced with Polyethylene Film
Typical Physical Property
Property |
Test Method |
Unit |
Results |
Grammage |
ISO 536 |
g/ sqm |
94 (+/-5%) |
Thickness |
---- |
Mic |
270 ( +/-5%) |
Tensile – MD and CD |
ASTM D 751-98 |
kgf |
6.3–3.7 |
Elongation – MD and CD |
ASTM D 751-98 |
% |
43.33 - 52.00 |
Trapezoidal Tea - Strength |
ASTM D5733-95 |
KGF |
1.9 |
Puncture Resistance |
ASTM D1424-96 |
Beach Unit |
55.5 |
Product Benefits
- Eco-friendly, environment friendly and Vapour barrier .
- Lightweight and easy handling and low cost waterproof type.
- For heavier basic weight based on order are also available.
- Different lengths and basic weight are available.
Remarks
- Above data are typical results and not the guaranteed performance.
- Tolerance: Weight and Thickness: ±10%; Width: ±2mm; Length: ±0.5%.
- The products should be stored at room temperature away from wet and heat source.
- Please do trial-application and make sure the product can serve the specific application before actually put it to use.
Packaging Details:
- Core ID: 76mm (3inch) Standard
- length: 250 mtrs, Other lengths available On request
- Thickness tolerance: +/-7% Maximum
- 1200mm, 1500mm&Customised Also
